"L'Audio bloc MK2"

These amplifiers are not in production at the moment they are available
on demand and only by quantities).
Your demands are wellcome.

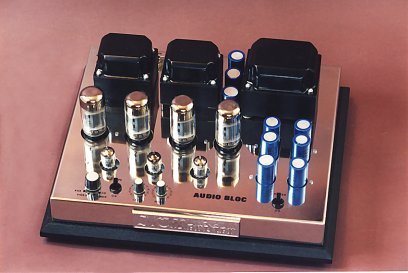

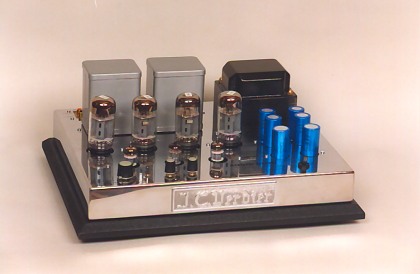

The MK2 is a new model of AUDIO BLOC.

It is a pure class A integrated amplifier using the best advantages provided by the 6L6 Tubes.

It is built around a Schmitt phase inverter especially known for its balance and undistorted work.

The wiring is traditionnal, avoiding the use of printed circuits for active assembling part.

All the components are wired between insulated posts and the circuit wires are joined together with plastic collars.

The assembling is realised with a particular care of the details worthy of the best professionnal apparatus.

Highly dynamic, MK2 AUDIO BLOC has the best capacity to restore all details of interpretations.

It will lead you directly to musical emotion.

Power requirement 220 Volts
Power consumption 200 Watts
Power output 2 x 20 Watts at 8 Ohms
Input Sensitivity 0,2 V
Power bandwidth (-3 Db) 20 Hz 60 KHz
Total harmonic distorsion 0,4 %

Power : Three terminals sockets CEE Standard
Input : RCA socket insulated from chasse
Output : Terminal posts for 4 mm banana plug or tripped wire.
Dimensions : 430 (W) x 170 (H) x 360 (D)
Net Weight: 14 kg
